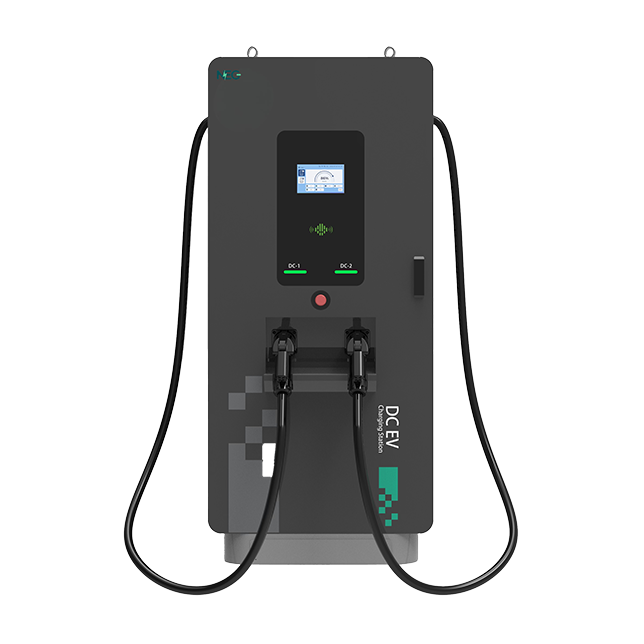

SMART DC Charging Station
IP 55 Rating
Withstands harsh outdoor environments for dependable fast charging.
Full Protection
Multi-layer safeguards ensure secure high-power charging.
RFID Authentication
User access control for public and commercial charging points.
Ethernet / 4G / WiFi
Real-time data connectivity for networked charging stations.
CCS2
Works seamlessly with DC fast-charging interfaces.
App Control
Remote charge start/stop and live monitoring for efficient use.
IP 55 Rating
Withstands harsh outdor environments for dependable fast charging.
Ethernet / 4G / WiFi
Real-time data connectivity for networked charging stations.
Full Protection
Multi-layer safeguards ensure secure high-power charging.
Type 2
Works seamlessly with DC fast-charging interfaces.
RFID Authentication
User access control for public and commercial charging points.
App Control
Remote charge start/stop and live monitoring for efficient use.
| Model Name | SMART DC Charging Station (BDC60-D / BDC120-D / BDC180-D / BDC240-D) |
| Input Rating | AC400V ±10%, 3P+N+PE |
| Output Power | 60 kW / 120 kW / 180 kW / 240 kW |
| Output Current | CCS1/CCS2/NACS: 0–200 A / 0–250 A, depending on model |
| Charging Outlets | Dual connectors supporting CCS1, CCS2, GBT, CHAdeMO and NACS |
| Efficiency | ≥95%, Power Factor ≥0.99 |
| Display | 7-inch high-brightness LCD touch screen / LED indicators |
| Buttons and Switch | Emergency Stop Button |
| Card Reader | RFID (ISO 14443-A/B, hardware encryption) |
| Network Interface | 4G, Wi-Fi, Ethernet |
| Protocol (EVSE&Backend) | OCPP 1.6J |
| Protocol (EVSE&EV) | CCS1, CCS2, CHAdeMO, GBT, NACS |
| Dimension (W x H x D) | 800 × 800 × 1800 mm (Packaging Dimension: 1050 × 1000 × 1900 mm) |
| Weight | Approx. 320 – 440 kg, depending on model |
| Installation | Floor-stand type, bottom inlet / top outlet cable wiring, total gun cable length 5 m |
| Certificate / Compliance | EN IEC 61851-1:2019, IEC 61851-1:2017, EN 61851-23:2014, IEC 61851-24:2014, EN IEC 61000-6-2:2019, EN IEC 61000-6-4:2019, EN IEC 61851-21-2:2021, TR-25, CB Scheme (ILAC-MRA) |
