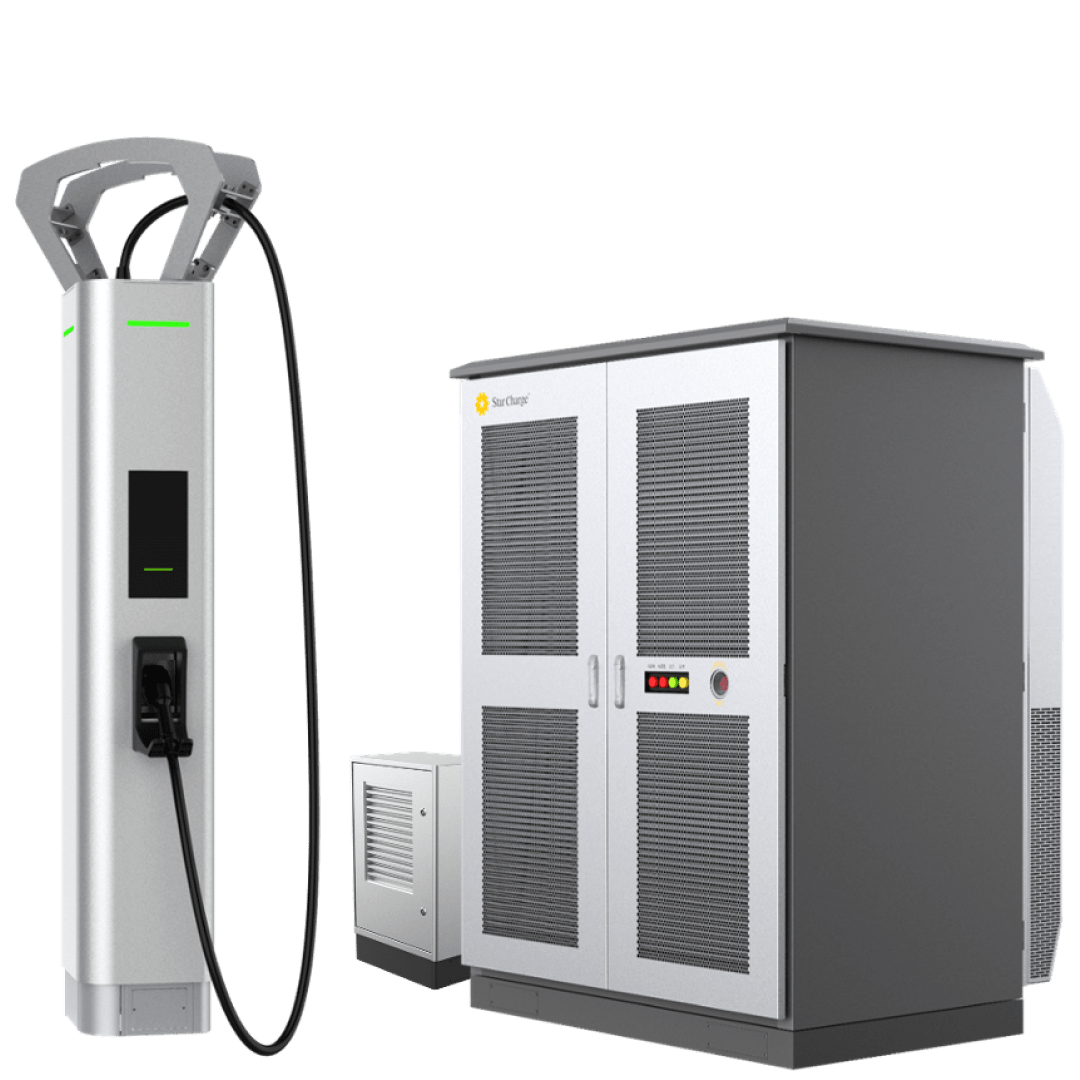

Nova 360 V2

High Power

500A max. output current per charging channel

Scalability

Up to 6 charging points per power cabinet

Flexible

Natural & Liquid Cooling Unit integrated in one system

Dynamic Power Allocation

Accommodate to different EV power needs

High Power

500A max. output current per charging channel

Flexible

Natural & Liquid Cooling Unit integrated in one system

Scalability

Up to 6 charging points per power cabinet

Dynamic Power Allocation

Accommodate to different EV power needs

Model NameNova 2
Input Rating342-456Vac,3 phases, 50/60Hz, 2 x (L1+L2+L3+N+PE)
Output InterfaceL+N+PE 2 ×CCS2(Natural-cooling)
Output Power360kW max.
Output Voltage200-1000Vdc
Output Current (User Unit)200A max./connector (300A max./connector is optional)
Output Current (Power Cabinet)500A max./channel
Display10.4-inch LCD touch screen
Support LanguageEnglish (Other languages available upon request)
Push ButtonsEmergency button & 4 x Mechanical buttons for screen operation
RFID ReaderISO/IEC14443 A/B, ISO/IEC 18092, IEC/ISO 15693
Network Interface (User Unit)4G
Network Interface (Power Cabinet)4G+Wi-Fi+Ethernet
Charging ProtocolOCPP 1.6J
Dimension (User Unit)
(W x H x D)

940*2000*440mm
(including cable management)

620*2000*440mm
(excluding cable management system)

Dimension (Power Cabinet)
(W x H x D)		1564*2046*1176mm
Weight (User Unit)

240kg
(including cable management)

200kg
(excluding cable management system)

Weight (Power Cabinet)Approx. 840kg (excluding power modules)
InstallationGround mounting
Certificate / ComplianceCE, RED,UKCA,TR25
Model NameNeptune 360
Input Rating400Vac ±10%, 50/60 Hz, 3 -Phase
Output Interface1x CCS2, or 2x CCS
Output Power360kW max. or 2x 200kW max.
Output Voltage200 -1000Vdc
Output Current500A max.
Display10.1” LCD Touch Panel
Support LanguageSimplified Chinese, English
Push ButtonsEmergency stop button
RFID ReaderISO/IEC 14443 A/B Mifare RFID reader
Network Interface4G, Wi -Fi, Ethernet
Charging ProtocolOCPP1.6J
Dimension
(W x H x D)

User unit: 725*2597*504mm

Liquid cooling box: 533*878*375mm

Weightapprox. 660kg (excluding power modules)
InstallationGround-mounted
Certificate / ComplianceTR25:2016, CE
