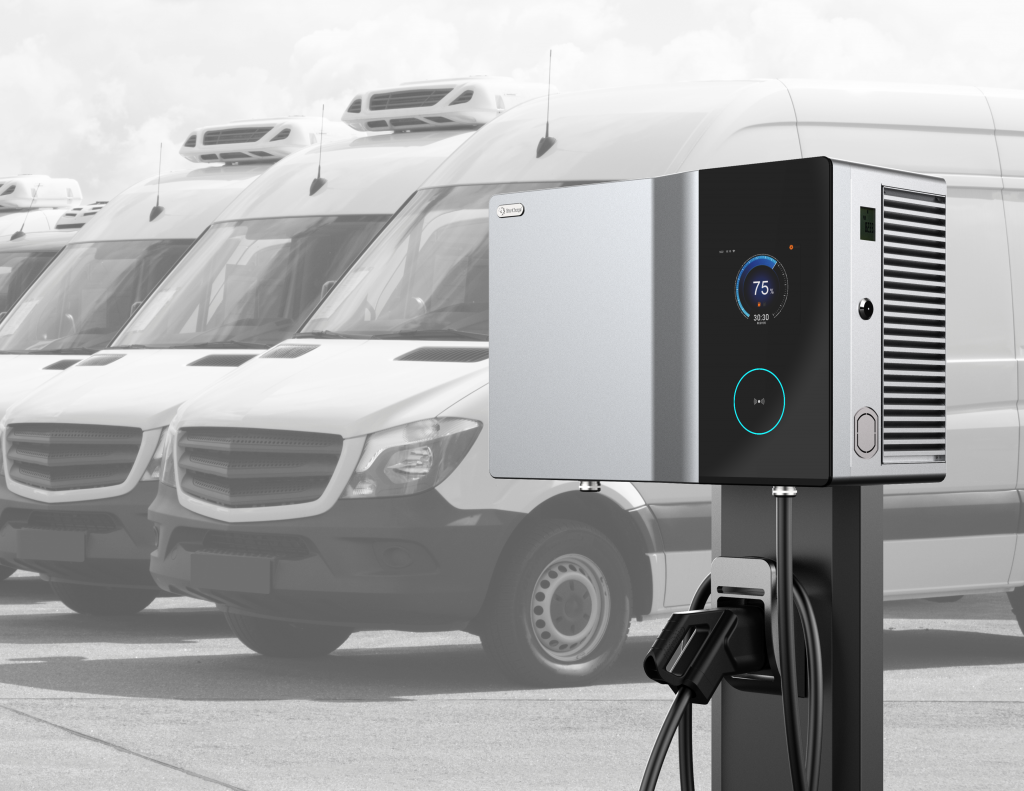

Commercial fleet ev charging Singapore with Venus 30
Slide
EV charger grant start date

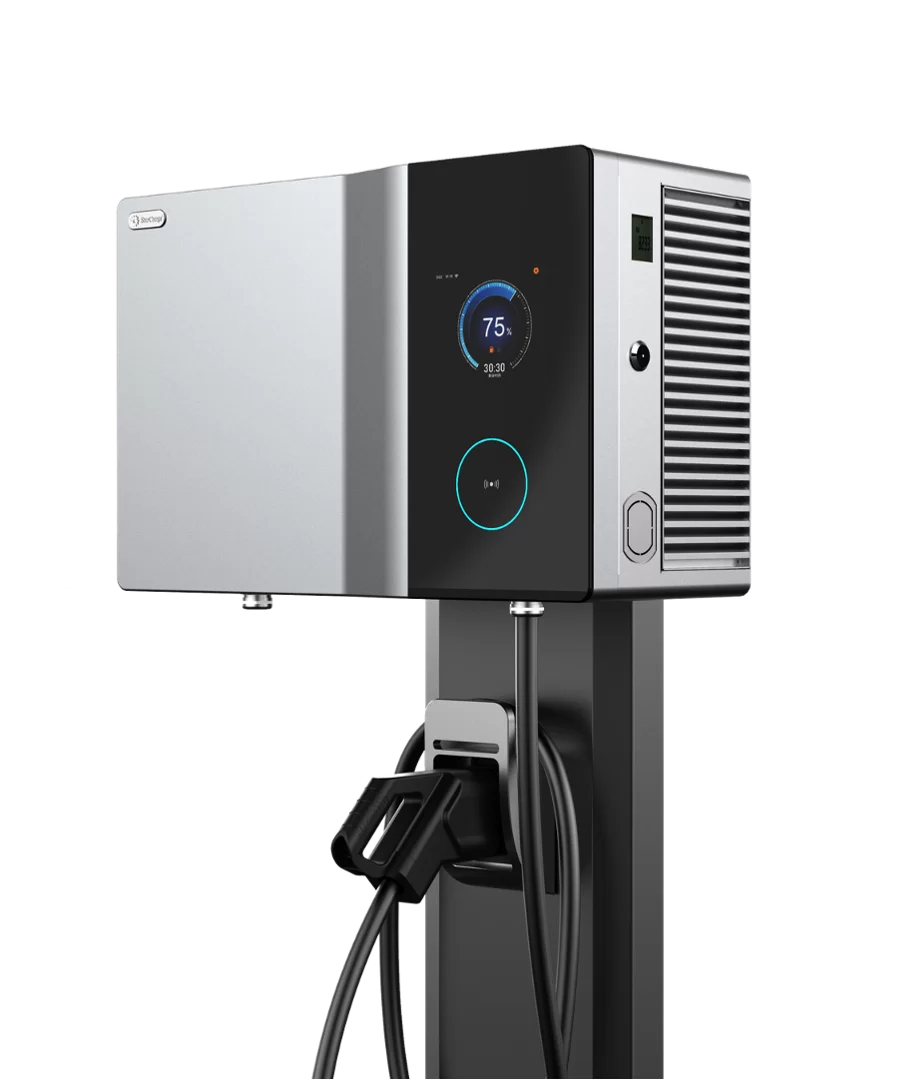

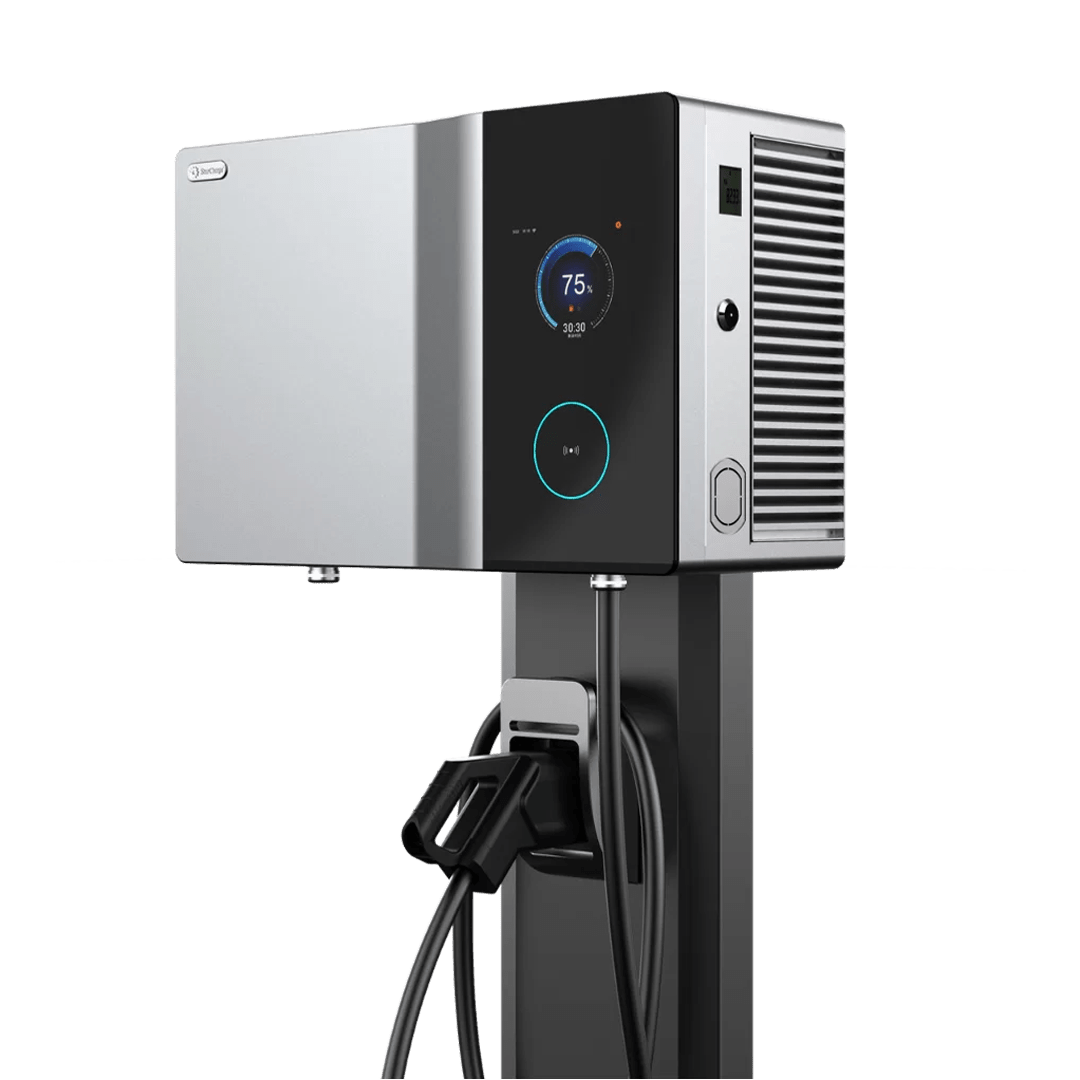

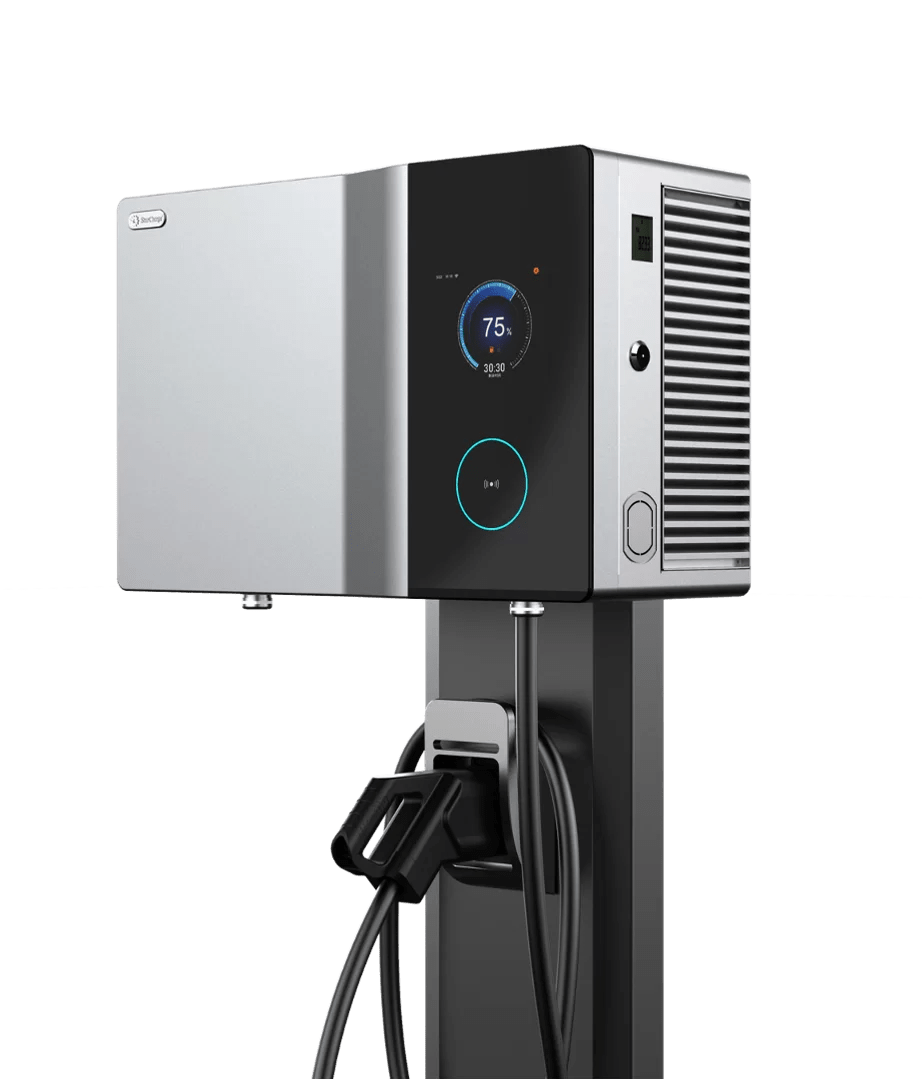

Venus 30

Efficiency

Max. 95% rectifier efficiency, extremely cost-saving.

Smart O&M

Remote monitoring, diagnosis and firmware upgrades.

Venus 30
Applicability

Suitable for almost all electric vehicles.

Safety

Robust all-weather enclosure for indoor and outdoor use.

Efficiency

Max. 95% rectifier efficiency, extremely cost-saving.

Smart O&M

Remote monitoring, diagnosis and firmware upgrades.

Applicability

Suitable for almost all electric vehicles.

Safety

Robust all-weather enclosure for indoor and outdoor use.

Model Name Venus 30
Input Rating 400Vac ±10%, 50/60 Hz, 3 -Phase
Output Interface1 x CCS2
Output Power30kW max.
Output Voltage200 -500Vdc
Output Current80A max
Display 7” LCD Touch Panel
Support Language Simplified Chinese, English
Push Buttons Emergency stop button
RFID Reader ISO/IEC 14443 A/B Mifare RFID reader
Network Interface4G, Wi -Fi, Ethernet
Charging ProtocolOCPP1.6J
Cable Length3.4m
Dimension
(W x H x D)		680*440*280mm
WeightApprox. 35kg (excluding power module)
InstallationWall-mounted, Column-mounted
Certificate / ComplianceTR25:2016, CE


Download Spec Sheet
Request a demo & drive your EV to our showroom for a quick charge today!
CONTACT US
Share on:

Start typing and press enter to search

Scroll to Top

Let us help you.

We facilitate loan facility services for interested customers. This service is only applicable for commercial customers and not for personal loans.

For more information, please fill in the form below and our friendly sales consultant will get back to you shortly.

Interested in joining the Closed Beta Testing of the QuickCharge Mobile App?

Register your interest with QuickCharge.sg and leave the hard work to us.

By registering your interest with us, QuickCharge.sg will undertake the role of EVCO and approach your MCST for the application of the EV Common Charger Grant. As a token of appreciation, you will receive free charging credits for successful QuickCharge EV charger installation within your condominium/private apartment!

Cost for each cost component50% co-funding on each cost componentTotal co-funding amount
Example 1:
Charging system = $3,000
LEW fees = $2,000
Cabling and installation cost = $1,500		= $1,500
= $1,000
= $750		= $3,250
Example 2:
Charging system = $5,000
LEW fees = $3,000
Cabling and installation cost = $2,500 		= $2,500
= $1,500
= $1,000 (sub-cap of $1,000 on cabling and installation cost) 		= $4,000 (overall cap of $4,000 per charger)
Example 3 (2 chargers):
Charging system = $9,000
Average per charger = $4,500

Total LEW fees = $4,000
Average per charger = $2,000

Total cabling and installation cost = $5,500
Average per charger = $2,750		= $2,500 per charger
= $1,000 per charger
= $1,000 (sub-cap of $1,000 on cabling and installation cost) 		= $4,000 x 2 (overall cap of $4,000 per charger)
= $8,000

Charge towards this deal.

Decide now and enjoy later! Submit your interest to lock in your eligibility for our current promotions.

Free Site Evaluation

Our professional electrician will:
  • Identify and determine the power supply at your premises;
  • Understand technical requirements;
  • Propose location(s) for charger installation;
  • Ensure your power supply can safely support the power requirements of your charger; and,
  • Document the site visit.
