Artemis 7 / 11
Design
With curve surface, ring-shaped LED indicator
Safety
Solid as a shield, with multiple protections
Protection
Remarkable protection level up to IP55 & IK10
Connectivity
4G, Wi-Fi, Ethernet, Bluetooth, RS485, PLC
Design
Small and mighty with curved surface, LED indicator
Protection
Remarkable protection level up to IP55 & IK10

Safety
Solid as a shield, with multiple protections
Connectivity
4G, Wi-Fi, Ethernet, Bluetooth (configurable options)
Model Name | Artemis 7 | Artemis 11 |
Input Rating | 230Vac ±10%, 50/60Hz , Single phase | 230Vac ±10%, 50/60Hz , Single phase 400Vac ±10%, 50/60Hz , Three phases |
Output Power | 7kW min. | 11kW max. |
Output Current | 32A max. |
Status Indicators | LED | |
Buttons and Switch | Emergency stop button | |
Card Reader | ISO/IEC 14443 A/B, ISO/IEC 18092, IEC/ISO 15693 |
Bluetooth | Bluetooth 5.0 | |
Network Interface | 4G, Wi-fi, Ethernet | |
Charging Protocol | OCPP1.6J |
Dimension (W x H x D) | 280 x 280 x 148 mm |
Weight | Approx. 3.75kg |

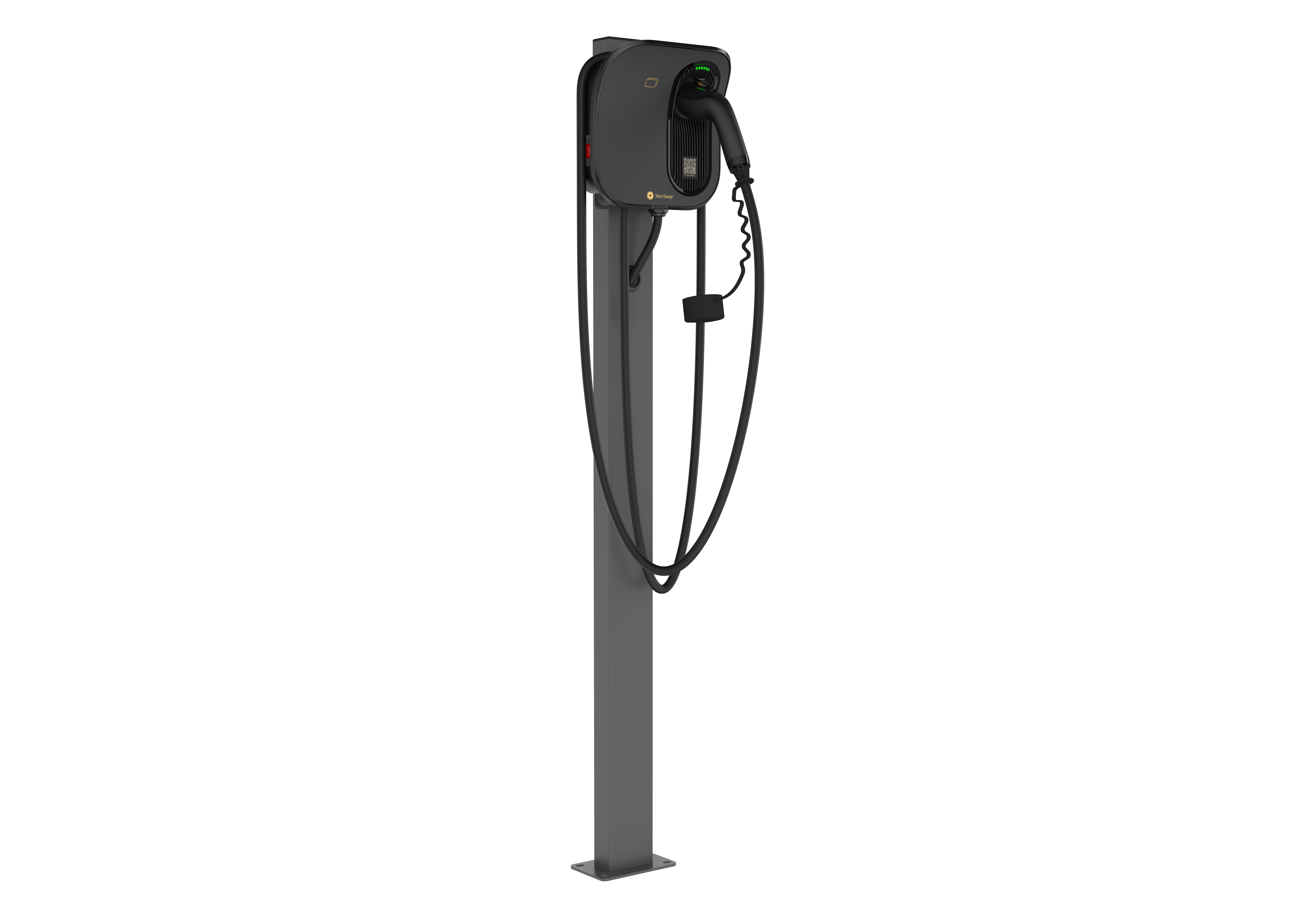

Installation | Wall mounting, Pole mounting (Pole is optional) |
Certificate / Compliance | TR25:2022, CE |
Request a demo & drive your EV to our showroom for a QuickCharge today!
