Modern and Stylish Design for Private & Public Application

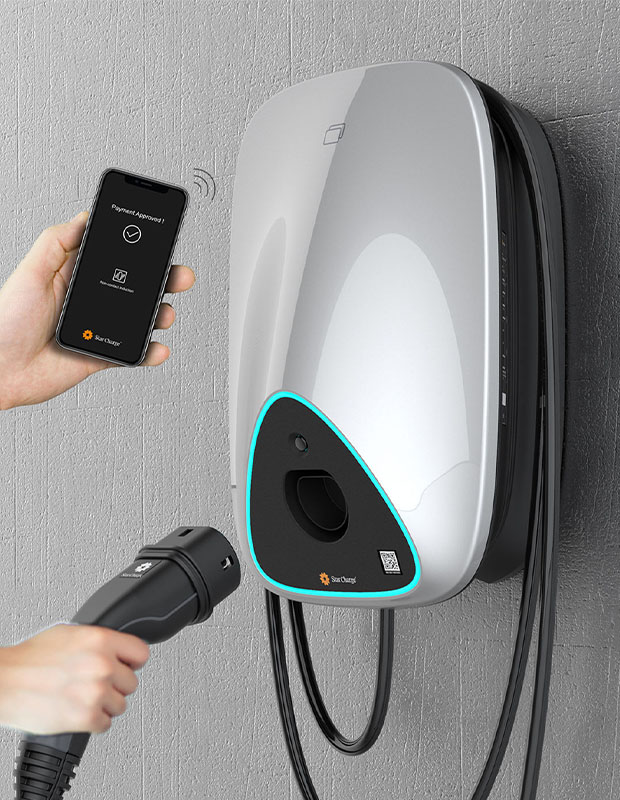

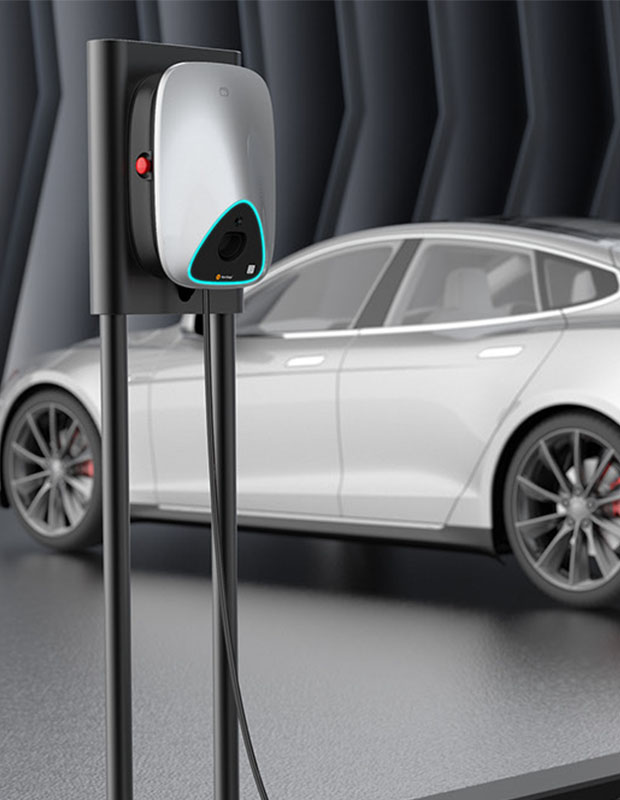

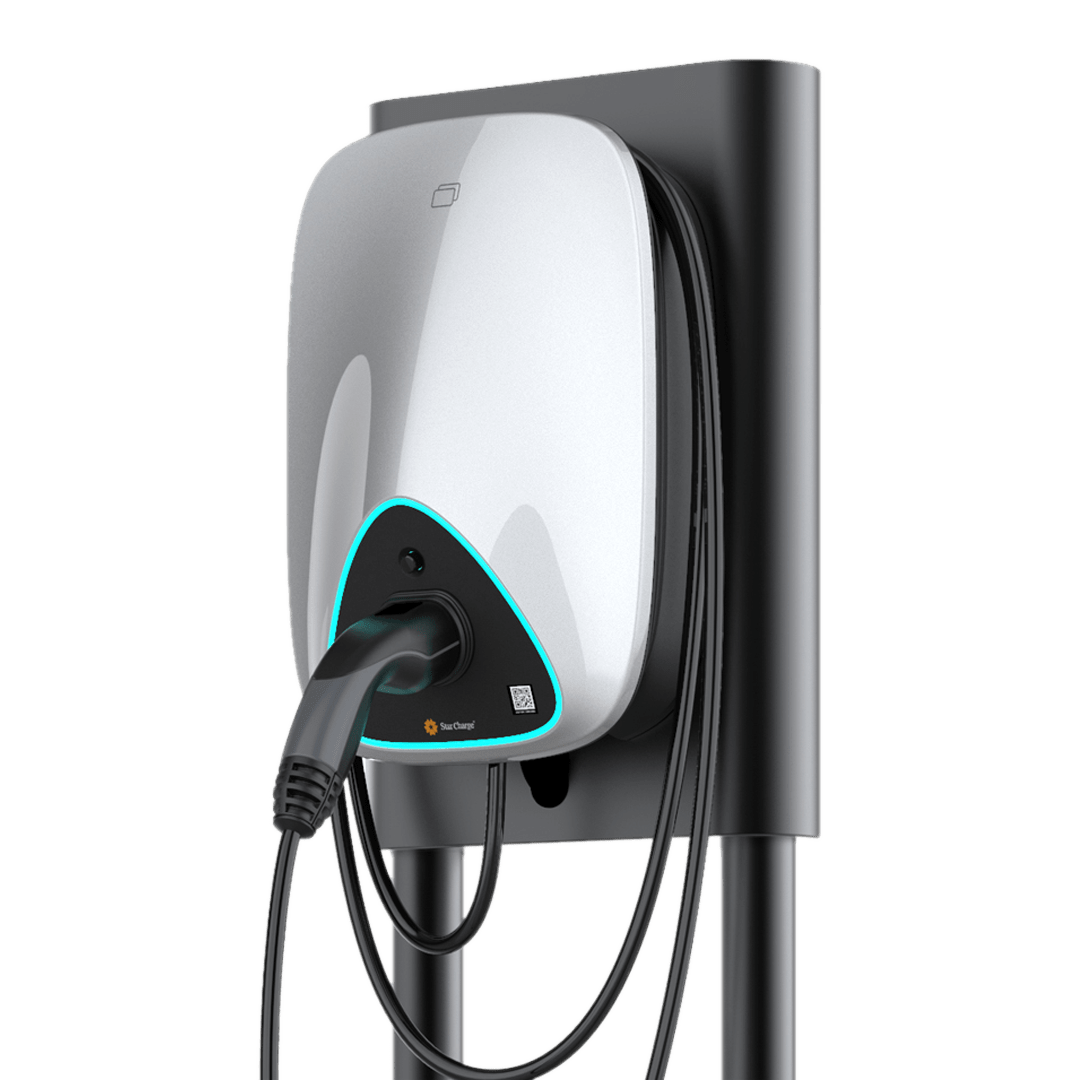

Aurora 7/22

Design

With curve surface, ring-shaped LED indicator

Safety

Solid as a shield, with multiple protections

Protection

Remarkable protection level up to IP55 & IK10

Connectivity

4G, Wi-Fi, Ethernet, Bluetooth, RS485, PLC

Design

With curve surface, ring-shaped LED indicator

Protection

Remarkable protection level up to IP55 & IK10

Safety

Solid as a shield, with multiple protections

Connectivity

4G, Wi-Fi, Ethernet, Bluetooth, RS485, PLC

Model Name Aurora 7 Aurora 22
Input Rating 230Vac± 10% 45-65Hz Single-phase 400Vac± 10% 45-65Hz Three-phase
Output Power 7kW max. 22kW max.
Output Current 32A max.
Status Indicators RGB LED
Buttons and Switch Emergency stop button

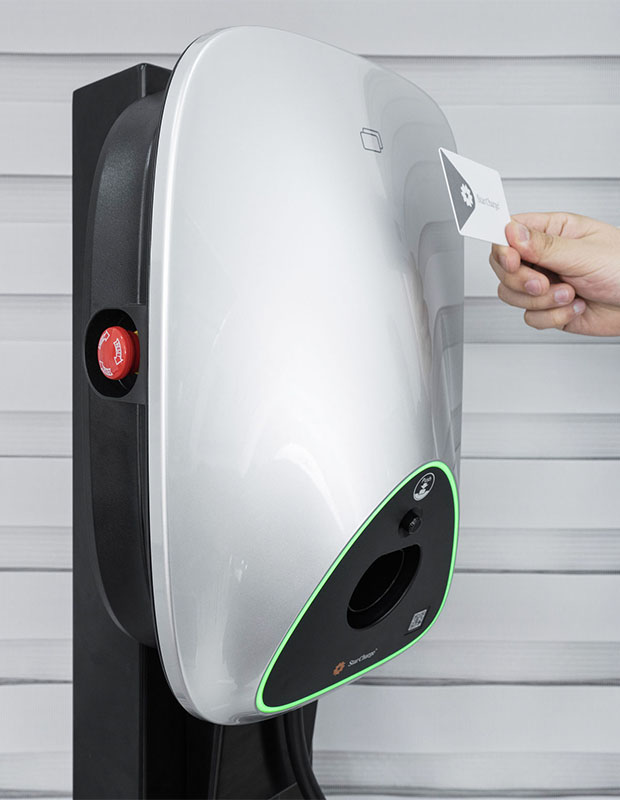

Card Reader 1SO/IEC 14443 A/B Mifare RFID reader
Network Interface4G LTE
Charging ProtocolOCPP1.6J
Dimension (W x H x D)282*409*148 mm
Weightapprox. 5.6kg
InstallationWall-mounted, Column-mounted
Certificate / Compliance TR25:2016, CE
Request a demo & drive your EV to our showroom for a quick charge today!
Share on:
Scroll to Top

Let us help you.

We facilitate loan facility services for interested customers. This service is only applicable for commercial customers and not for personal loans.

For more information, please fill in the form below and our friendly sales consultant will get back to you shortly.

Interested in joining the Closed Beta Testing of the QuickCharge Mobile App?

Register your interest with QuickCharge.sg and leave the hard work to us.

By registering your interest with us, QuickCharge.sg will undertake the role of EVCO and approach your MCST for the application of the EV Common Charger Grant. As a token of appreciation, you will receive free charging credits for successful QuickCharge EV charger installation within your condominium/private apartment!

Cost for each cost component50% co-funding on each cost componentTotal co-funding amount
Example 1:
Charging system = $3,000
LEW fees = $2,000
Cabling and installation cost = $1,500
= $1,500
= $1,000
= $750
= $3,250
Example 2:
Charging system = $5,000
LEW fees = $3,000
Cabling and installation cost = $2,500
= $2,500
= $1,500
= $1,000 (sub-cap of $1,000 on cabling and installation cost)
= $4,000 (overall cap of $4,000 per charger)
Example 3 (2 chargers):
Charging system = $9,000
Average per charger = $4,500

Total LEW fees = $4,000
Average per charger = $2,000

Total cabling and installation cost = $5,500
Average per charger = $2,750
= $2,500 per charger
= $1,000 per charger
= $1,000 (sub-cap of $1,000 on cabling and installation cost)
= $4,000 x 2 (overall cap of $4,000 per charger)
= $8,000

Charge towards this deal.

Decide now and enjoy later! Submit your interest to lock in your eligibility for our current promotions for the next 3-months.

Free Site Evaluation

Our professional electrician will:
  • Identify and determine the power supply at your premises;
  • Understand technical requirements;
  • Propose location(s) for charger installation;
  • Ensure your power supply can safely support the power requirements of your charger; and,
  • Document the site visit.
