EV charger grant start date

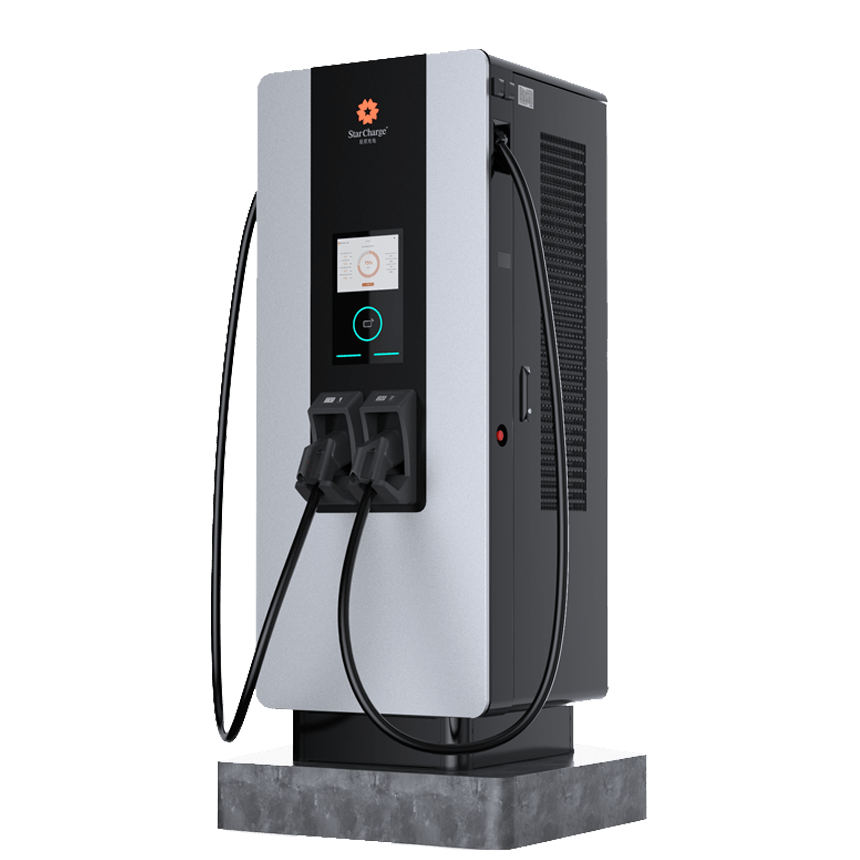

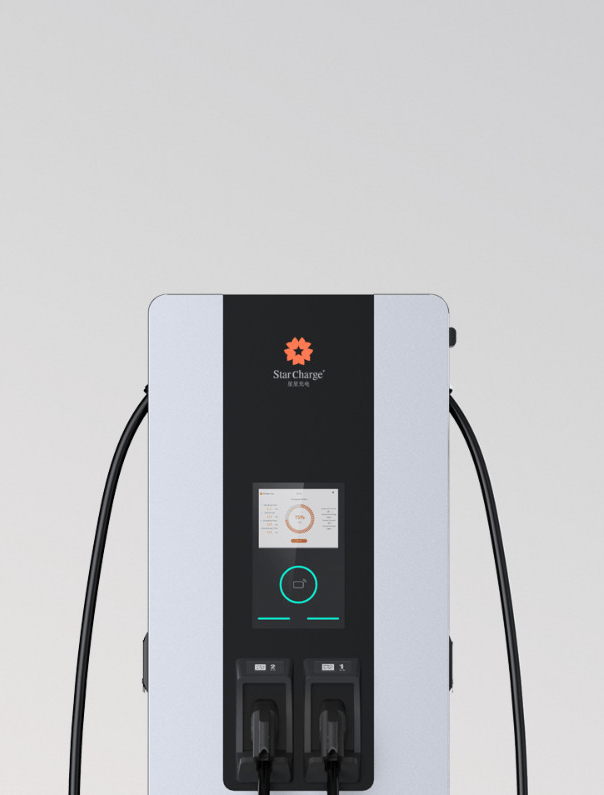

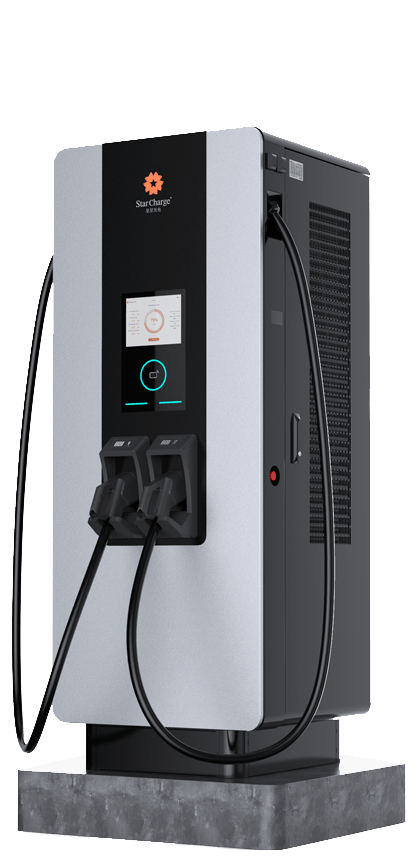

Titan 120 / 180

Versatility

200-1000V DC super wide output voltage range

Connectivity

Connect any backend based on OCPP 1.6J protocol

Flexibility

Meets different EV requirements and standards

Load Management

Smart power distribution according to EV’s demand

Versatility

200-1000V DC super wide output voltage range

Connectivity

Connect any backend based on OCPP 1.6J protocol

Flexibility

Meets different EV requirements and standards

Load Management

Smart power distribution according to EV’s demand

Model NameTitan 120
Input Rating400Vac ±10%, 50/60 Hz, 3 -Phase
Output Interface2 x CCS2
Output Power120kW to 180kW max
Output Voltage200 -1000Vdc
Output Current200A max.
Display10.4” LCD Touch Panel
Support LanguageSimplified Chinese, English
Push ButtonsEmergency stop button
RFID ReaderISO/IEC 14443 A/B Mifare RFID reader
Network Interface4G, Wi -Fi, Ethernet
Charging ProtocolOCPP1.6J
Dimension
(W x H x D)		800*2050*750mm
Weightapprox. 395kg (excluding power modules)
InstallationGround-mounted
Certificate / ComplianceTR25:2016, CE


Download Brochure
Request a demo & drive your EV to our showroom for a quick charge today!
CONTACT US
Loan Facilities
Free Site Evaluation
Lock In Our Promo Prices

Download our QuickCharge.sg app – the first accessible open-for-all charge point operating platform in Singapore.

Great things are meant to be shared.

Quick Links
Main Menu
Quick Links
Main Menu
Quick Links
Main Menu
Get QuickCharge.sg in-app offers & EV charging news delivered to your email address:
Get QuickCharge.sg in-app offers & EV charging news delivered to your email address:
Share on:
Scroll to Top

Let us help you.

We facilitate loan facility services for interested customers. This service is only applicable for commercial customers and not for personal loans.

For more information, please fill in the form below and our friendly sales consultant will get back to you shortly.

Interested in joining the Closed Beta Testing of the QuickCharge Mobile App?

Register your interest with QuickCharge.sg and leave the hard work to us.

By registering your interest with us, QuickCharge.sg will undertake the role of EVCO and approach your MCST for the application of the EV Common Charger Grant. As a token of appreciation, you will receive free charging credits for successful QuickCharge EV charger installation within your condominium/private apartment!

Cost for each cost component50% co-funding on each cost componentTotal co-funding amount
Example 1:
Charging system = $3,000
LEW fees = $2,000
Cabling and installation cost = $1,500		= $1,500
= $1,000
= $750		= $3,250
Example 2:
Charging system = $5,000
LEW fees = $3,000
Cabling and installation cost = $2,500 		= $2,500
= $1,500
= $1,000 (sub-cap of $1,000 on cabling and installation cost) 		= $4,000 (overall cap of $4,000 per charger)
Example 3 (2 chargers):
Charging system = $9,000
Average per charger = $4,500

Total LEW fees = $4,000
Average per charger = $2,000

Total cabling and installation cost = $5,500
Average per charger = $2,750		= $2,500 per charger
= $1,000 per charger
= $1,000 (sub-cap of $1,000 on cabling and installation cost) 		= $4,000 x 2 (overall cap of $4,000 per charger)
= $8,000

Charge towards this deal.

Decide now and enjoy later! Submit your interest to lock in your eligibility for our current promotions.

Free Site Evaluation

Our professional electrician will:
  • Identify and determine the power supply at your premises;
  • Understand technical requirements;
  • Propose location(s) for charger installation;
  • Ensure your power supply can safely support the power requirements of your charger; and,
  • Document the site visit.
