EV charger grant start date

Product Introduction

Lorem ipsum dolor sit amet, consectetur adipiscing elit. Donec ut aliquet elit. Cras sodales, nisi vel auctor eleifend, nisl nisi scelerisque turpis, eget feugiat ex tellus vitae est. Donec accumsan dolor eget elit gravida iaculis.

Benefit 1

2x guns 30kW, unique single gun 60kW usage

Benefit 2

7-inch LCD Touch Panel & RFID card reader

Benefit 3

Future proof connectivity with OCPP1.6J

Benefit 4

Robust all-weather enclosure for indoor and outdoor use

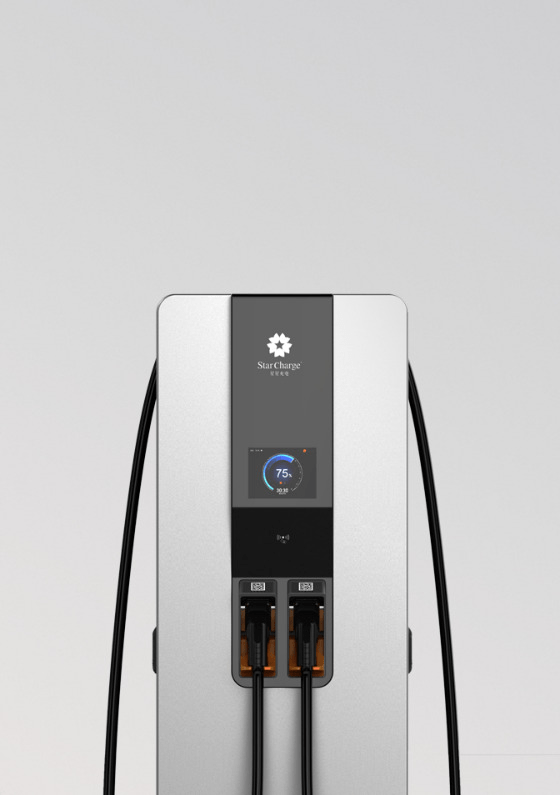

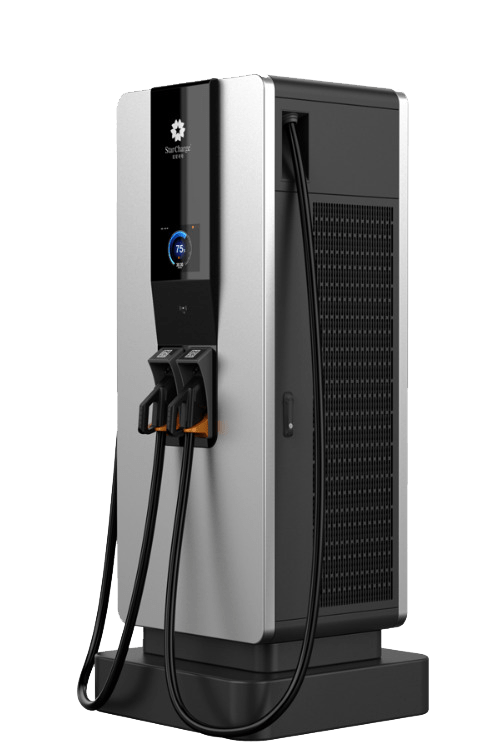

Model NameVenus 60
Input Rating400Vac ±10%, 50/60 Hz, 3 -Phase
Output Interface2 x CCS2
Output Power2x 3kW max. / 60kW max
Output Voltage200 -500Vdc
Output Current2 x 80A max
Display7” LCD Touch Panel
Support LanguageSimplified Chinese, English
Push ButtonsEmergency stop button
RFID ReaderISO/IEC 14443 A/B Mifare RFID reader
Network Interface4G, Wi -Fi, Ethernet
Charging ProtocolOCPP1.6J
Cable Length3.4m
Dimension (W x H x D)680*440*280mm
WeightApprox. 50kg (excluding power module)
InstallationWall-mounted, Column-mounted
Certificate / ComplianceTR25:2016, CE


Download Brochure
Would you like to know more about QuickCharge? Request a demo from us today!
CONTACT US
Loan Facilities
Free Site Evaluation
Lock In Our Promo Prices

Download our QuickCharge.sg app – the first accessible open-for-all charge point operating platform in Singapore.

Great things are meant to be shared.

Quick Links
Main Menu
Quick Links
Main Menu
Quick Links
Main Menu
Get QuickCharge.sg in-app offers & EV charging news delivered to your email address:
Get QuickCharge.sg in-app offers & EV charging news delivered to your email address:
Share on:

Start typing and press enter to search

Scroll to Top

Let us help you.

We facilitate loan facility services for interested customers. This service is only applicable for commercial customers and not for personal loans.

For more information, please fill in the form below and our friendly sales consultant will get back to you shortly.

Interested in joining the Closed Beta Testing of the QuickCharge Mobile App?

Register your interest with QuickCharge.sg and leave the hard work to us.

By registering your interest with us, QuickCharge.sg will undertake the role of EVCO and approach your MCST for the application of the EV Common Charger Grant. As a token of appreciation, you will receive free charging credits for successful QuickCharge EV charger installation within your condominium/private apartment!

Cost for each cost component50% co-funding on each cost componentTotal co-funding amount
Example 1:
Charging system = $3,000
LEW fees = $2,000
Cabling and installation cost = $1,500		= $1,500
= $1,000
= $750		= $3,250
Example 2:
Charging system = $5,000
LEW fees = $3,000
Cabling and installation cost = $2,500 		= $2,500
= $1,500
= $1,000 (sub-cap of $1,000 on cabling and installation cost) 		= $4,000 (overall cap of $4,000 per charger)
Example 3 (2 chargers):
Charging system = $9,000
Average per charger = $4,500

Total LEW fees = $4,000
Average per charger = $2,000

Total cabling and installation cost = $5,500
Average per charger = $2,750		= $2,500 per charger
= $1,000 per charger
= $1,000 (sub-cap of $1,000 on cabling and installation cost) 		= $4,000 x 2 (overall cap of $4,000 per charger)
= $8,000

Charge towards this deal.

Decide now and enjoy later! Submit your interest to lock in your eligibility for our current promotions.

Free Site Evaluation

Our professional electrician will:
  • Identify and determine the power supply at your premises;
  • Understand technical requirements;
  • Propose location(s) for charger installation;
  • Ensure your power supply can safely support the power requirements of your charger; and,
  • Document the site visit.
